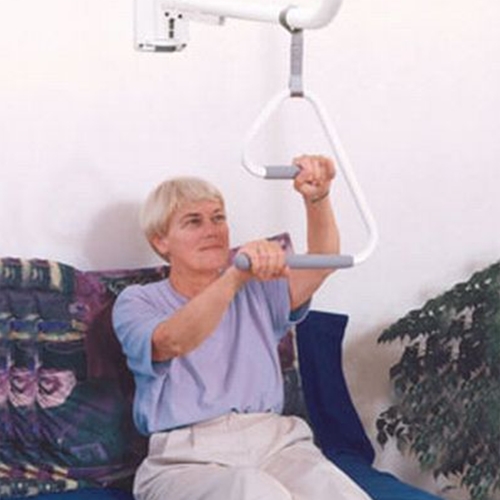

E2 wall mount trapeze handle

Description

An exceptionally solid trapeze that features the innovative e2™ trapeze handle for increased leverage. Its convenient swing-away trapeze arm and professional grade design make it an excellent option for home or facility use.

Features:

Innovative e2™ Trapeze Handle

Unlike conventional triangle trapeze handles, the e2™ trapeze handle simulates two rungs on a ladder allowing for better leverage when climbing up to a seated position. Can be positioned in 5 places long the swing arm.

Pivoting Trapeze Arm

Pull-pin allows trapeze arm to pivot horizontally into 7 locking positions for optimal placement of the trapeze arm. When not in use, simply pivot and lock the trapeze against the wall for convenient storage.

Adjustable Pull Knob

Pull knob can be set in different locations (3.5", 7", 10", 13", 16" from wall) to set at most suitable height.

Space Efficient

The e2™ Wall Mount Trapeze maximizes floor space, where conventional floor based trapeze units often require the bed to be away from the wall, thus reducing valuable wheelchair space.

Wall Mounted Options

Can be mounted to virtually any wall with basic structural reinforcements. Where structural reinforcements are not desirable, e2™ Wall Mount Trapeze can be mounted to a Wall Plate (sold separately) that spans structural studs for rock-solid support.

Specifications:

e2 ™ Trapeze Handle

0.875" / 2.22 cm diameter rail. Grip lengths 6.25" / 16 cm and 10.25" / 26 cm.

Strap Range-29" / 74 cm.

Swing Arm Length

36" / 91 cm length. Recommended 79" / 201 cm from floor to bottom rail.

Swing Arm Diameter-1.5" / 3.81 cm diameter

Wall Plate-5.5" x 14.875" / 14 x 38 cm with 3/8" fastener holes (x6).

User Weight Capacity-300 lbs / 136 kg.
